English

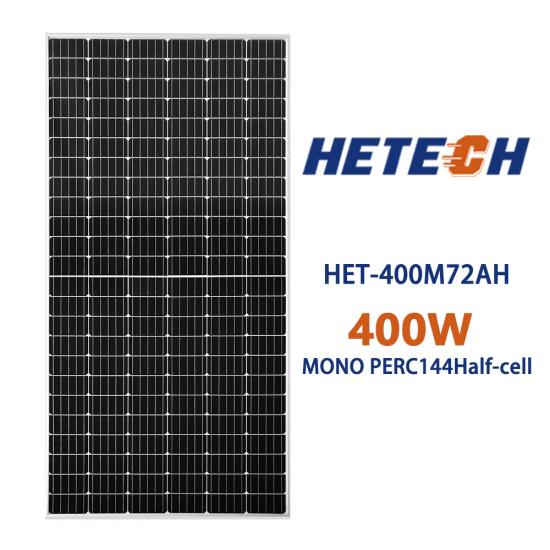

The HETECHSOLAR 72 HET-400M72AH solar panel
features 144 5-busbar Mono PERC half-cells that are PID Free and shade tolerant.
They are certified for high snow (5400Pa) and wind (2400Pa) loads and have an IP67 Rated Junction Box for longevity in outdoor environments.
The panels features high-voltage 1500V capability with UL & IEC certification, you can run longer strings with lower balance of system costs and better LCOE.
HETECHSOLAR 72 HET-400M72AH solar panels include a 10-year workmanship warranty and a 25-year linear power warranty.
Item No.:
HET-400S72AHGMax Power:
400WWeight:
22.8kgDimension:
2008*996*40mmWarranty:
25yearsCertification:
TUV/CE/CEC/FCC/CQC/ISO/ROHSPayment :
T/T, L/C, Paypal, Western UnionFearures:
HETECH SOLAR 72 400W Mono PERC 144 Half-cell Solar Panel
The HETECHSOLAR 72 HET-400M72AH solar panel features 144 5-busbar Mono PERC half-cells that are PID Free and shade tolerant.
They are certified for high snow (5400Pa) and wind (2400Pa) loads and have an IP67 Rated Junction Box for longevity in outdoor environments.
The panels features high-voltage 1500V capability with UL & IEC certification, you can run longer strings with lower balance of system costs and better LCOE.
HETECHSOLAR 72 HET-400M72AH solar panels include a 10-year workmanship warranty and a 25-year linear power warranty.
|
Mechanical Characteristics |
||||
|
Front Glass |
3.2mm high transmission tempered glass |
|||
|
Encapsulation |
EVA |
|||
|
Cells |
120pcs 166×83mm Monocrystalline solar cells |
|||
|
Backsheet |
Composite film |
|||
|
Frame |
Anodized aluminum profile |
|||
|
Junction Box |
Rated current:15A,IP68,TUV |
|||
|
Cables |
length 300mm;customized length |
|||
|
Connectors |
Compatible with MC4 |
|||
|
Module Type |
HET-395M72HA |
HET-400M72HA |
HET-405M72HA |
HET-410M72HA |
|
Maximum Power (Pmax) |
395W |
400W |
405W |
405W |
|
Open-circuit Voltage (Voc) |
49.21V |
49.50V |
49.81V |
50.12V |
|
Short-circuit Current (Isc) |
10.21A |
10.26A |
10.32A |
10.37A |
|
Maximum Power Voltage (Vmp) |
40.85V |
41.17V |
41.46V |
41.78V |
|
Maximum Power Current (Imp) |
9.67A |
9.72A |
9.77A |
9.82A |
|
Module Efficiency(%) |
19.8% |
20.0% |
20.3% |
20.5% |
|
Power Tolerance |
0~+5W |
|||
|
Standard Test Environment |
Irradiance 1000W/m2, Cell Temperature 25℃，Spectrum AM 1.5 |
|||
Packing Details:
|
Container |
20GP |
40GP |
40HC |
|
Pcs/pallet |
27 |
27 |
27 |
|
Pallet/container |
10 |
12 |
22 |
|
Pcs/container |
270 |
325 |
594 |
HETECHSOLAR solar contractor installation
The HETECHSOLAR 400 is suitable for commercial rooftop and ground mounted solar systems.
144 high-performance 5-busbar mono PERC half-cells
UL and IEC 1500V certified; lowers BOS costs and yields better LCOE
Reinforced cells prevent PID
Excellent performance in low-light environments
Certified for high snow and wind loads
Half Cell Modules:
half-cut solar cells
HET-400M72AH modules consist of half-cut cells. These uniquely designed cells feature high-efficiency mono PERC technology.
Half cell modules have twin arrays and thus increased tolerance to shade. There’s also less current loss, for higher module power.
HETECHSOLAR 72 solar panel certifications:
ISO5001:2008 Quality Standards
ISO14001:2004 Environmental Standards
IEC61215, IEC61730 certified
CE Certification
FCC Certification
HET-400M72AH Warranty
10 Year Workmanship Warranty
25 Year Linear Power Warranty
