160W Mono Foldable Solar Panel with Charge Controller is the key component to a system when going solar Off -Grid system. These panels are relatively compact and are a breeze to set up. Whether you are going camping in the mountains or taking a trip to the beach, this panel can be a great start to your off-grid system! This panel has several uses including marine, dry camp, RVS and other off-grid applications.
Item No.:
HET-F160Max Power:
160WWeight:
12kgsDimension:
760*660*70mmWarranty:
25yearsCertification:
CE/FCC/ROSH/IOSPayment :
T/T, L/C, Paypal, Western Union
Product name:

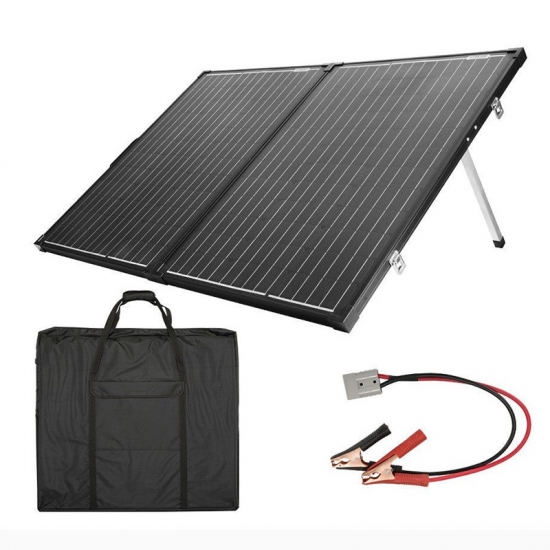

160W full black folding mono portable solar panel

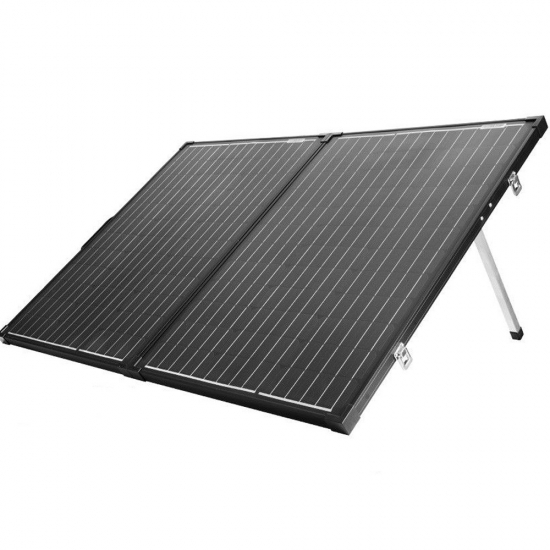

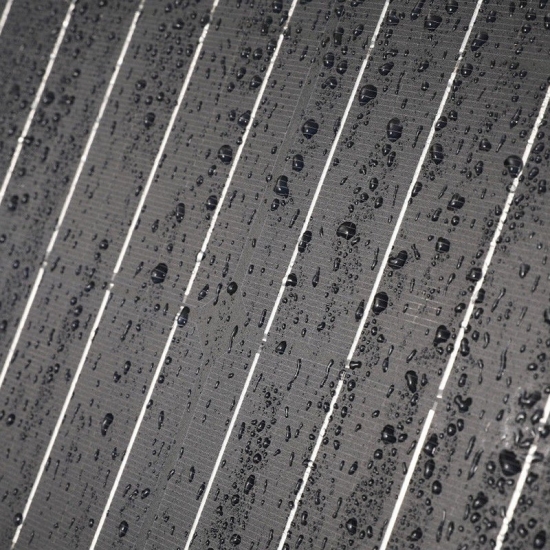

The portable solar panel has a sturdy aluminum alloy kickstand that will allow you to set the tilt angle of the PV module at multiple degrees, which will optimize the solar energy production of the panel. The solar module is waterproof with an IP65 rating for the junction box .
Applications:
Adapt to multiple application scenarios:
Outdoor camping/Wild bee/Grassland grazing/Self-driving tour/Desert island emergency/Outdoor advanture
Electrical Characteristics(STC):
|
Module Type |
HET-F40M |
HET-F80M |
HET-F100M |
HET-160M |
|
Maximum Power (Pmax) |
40W |
80W |
100W |
160W |
|
Open-circuit Voltage (Voc) |
20V |
23.5V |
22.2V |
22.5V |
|
Short-circuit Current (Isc) |
9.24A |
4.54A |
5.93A |
9.48A |
|
Maximum Power Voltage (Vmp) |
18V |
20V |
18V |
17.9V |
|
Maximum Power Current (Imp) |
2.22A |
4.0A |
5.56A |
8.94A |
|
Size |
420*350*70mm |
530*510*70mm |
530*670*70mm |
760*660*70mm |
|
Power Tolerance |
0~+5W |
|||
|
Standard Test Environment |
Irradiance 1000W/m2, Cell Temperature 25℃，Spectrum AM 1.5 |
|||
