HETECH full black color pv modules with 5bb perc mono solar cells, manufacture by perc half pv technology , high efficiency solar panel 400w 410w commonly used for solar power system and commercial solar plant, single solar panel power range 400w-410w based on 144 half cells.
Item No.:
HET-410S72AHMax Power:
410WWeight:
22.8kgDimension:
1684*996*35mmWarranty:
25yearsCertification:
TUV/CE/CEC/FCC/CQC/ISO/ROHSPayment :
T/T, L/C, Paypal, Western Union
Products Name:

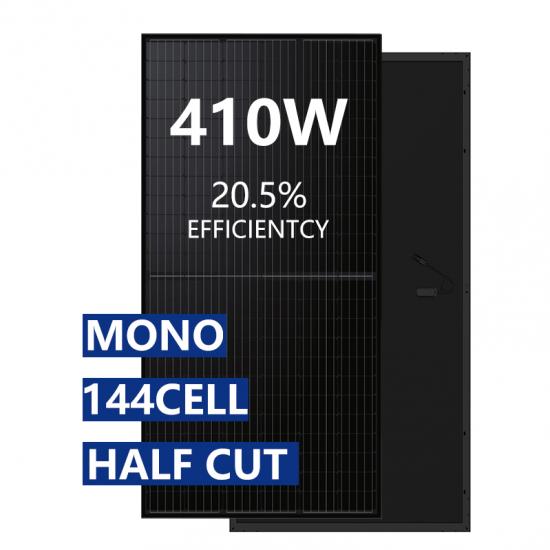

All black 5BB 144 half cell 410w solar module
Electrical Characteristics(STC):
|
Mechanical Characteristics |
||||
|
Front Glass |
3.2mm high transmission tempered glass |
|||
|
Encapsulation |
EVA |
|||
|
Cells |
144pcs 158×79mm Monocrystalline solar cells |
|||
|
Backsheet |
Composite film |
|||
|
Frame |
Anodized aluminum profile |
|||
|
Junction Box |
Rated current:15A,IP68,TUV |
|||
|
Cables |
length 300mm;customized length |
|||
|
Connectors |
Compatible with MC4 |
|||
Module Type
HET-410S72AH
Maximum Power (Pmax)
410W(STC)
303W(NOCT)
Open-circuit Voltage (Voc)
50.12V
46.06V
Short-circuit Current (Isc)
10.37A
8.38A
41.78V
38.28V
Maximum Power Current (Imp)
9.82A
7.93A
Module Efficiency(%)
20.5%
Power Tolerance
0~+5W
Standard Test Environment
Irradiance 1000W/m2, Cell Temperature 25℃，Spectrum AM 1.5
Maximum Power Voltage (Vmp)
To Parterners:
We are Chinese solar panel factory specialized in solar panel manufacturing since 2009.
Now our 60cells, 72cells, 120half cells, 144half cells, 132half cells, 156half cells ,9BB half cells standard solar panel
for solar power plant application are on a high promotion with very good price:
Production capacity: 500MW annual to ensure fast delivery.

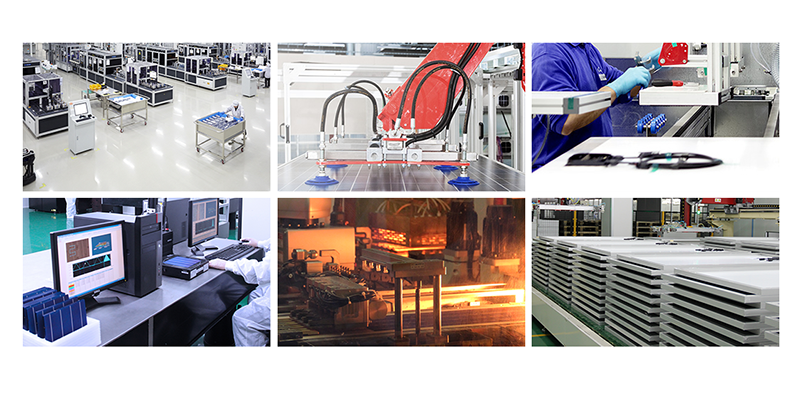

Our Workshop:
Products Characters:
1. Excellent space utilization performance, increasing power density effectively and reducing costs of solar panel.
2. Reducing the temperature of the solar module hot spot above 20℃ , to ensure solar power system stability and reliability.
3. Larger size of light receiving area, higher solar panel power, lower system cost.
4. Lower temperature coefficient, zero depth reflection increasing.
5. More busbars, the less of broken and cracking , as the narrowed cell busbar width,the light receiving area and power are increased too.
6. Reducing the loss of current mismatch and resistance of solar panel.
More Products information pls contact with us mail :coco20.xu@gmail.com.
Previous :
5BB 144 half cell 410w solar module with Black FrameNext :
Full black 144 half cell mono solar panel 5BB 400w pv solar moduleIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
The HETECHSOLAR 72 HET-400M72AH solar panel features 144 5-busbar Mono PERC half-cells that are PID Free and shade tolerant. They are certified for high snow (5400Pa) and wind (2400Pa) loads and have an IP67 Rated Junction Box for longevity in outdoor environments. The panels features high-voltage 1500V capability with UL & IEC certification, you can run longer strings with lower balance of system costs and better LCOE. HETECHSOLAR 72 HET-400M72AH solar panels include a 10-year workmanship warranty and a 25-year linear power warranty.
PV modules, are rational designed, excellent in workmanship, and have a stable performance 9BB solar panels,power range covers 390W-405W, are widely used in photovoltaic power stations.
The half cell PV modules, are rational designed, excellent in workmanship, and have a stable performance,power range covers 390W-410W, are widely used in photovoltaic power stations.The products have the advantages of high efficiency, high power, high reliability and long life.
72pcs mono half-piece solar panels are the core products . High-efficiency PERC solar cell combined with solar cell cutting half technology, the product has higher output power, effectively reducing the cost of single-watt system; the product is excellent in occlusion loss/temperature coefficient, and the solar cell cutting technology effectively reduces the hot spot risk of high-power components , showing better power generation performance and reliability in system.
High efficiency mono solar cell with positive tolerance only International quality management system with 100% panel power and EL test before shipment. Fire test, Ammonia corrosion test, Salt mist corrosion resistance approved. Wind load 2400 Pa, Snow load 5400 Pa.
Assembled with high-efficiency PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
325W 5 busbar solar cell adopts new technology to improve the efficiency of modules , offers a better aesthetic appearance, making it perfect for rooftop installation.
Our 330W solar panel is the most powerful, if you are looking for faster power generation this solar module will deliver. The high wattage output combined with high efficiency monocrystalline cells make this solar panel of particular interest for motorhome uses, static caravans, mobile homes, where larger power requirements are generally required.
