HETECH black frame pv modules with 9bb perc mono solar cells, manufacture by perc half pv technology , high efficiency solar panels 440w 445w 450w commonly used for solar power system and commercial solar plant, single solar panel power range 440w-450w based on 144 half cells.
Item No.:
HET-450S72AHMax Power:
450WWeight:
24.5kgDimension:
2115*1052*35mmWarranty:
25yearsCertification:
TUV/CE/CEC/FCC/CQC/ISO/ROHSPayment :
T/T, L/C, Paypal, Western Union
Products Name:

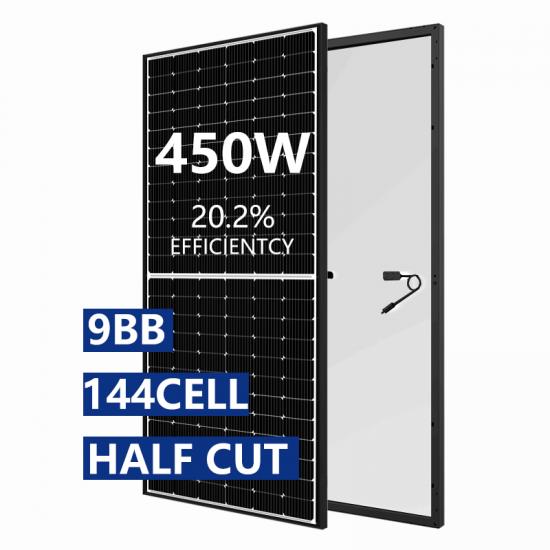

Black frame 9BB 450w solar panel with 144 half mono cell
Electrical Characteristics(STC):
|
Mechanical Characteristics |
||||
|
Front Glass |
3.2mm high transmission tempered glass |
|||
|
Encapsulation |
EVA |
|||
|
Cells |
144pcs 158×79mm Monocrystalline solar cells |
|||
|
Backsheet |
Composite film |
|||
|
Frame |
Anodized aluminum profile |
|||
|
Junction Box |
Rated current:15A,IP68,TUV |
|||
|
Cables |
length 300mm;customized length |
|||
|
Connectors |
Compatible with MC4 |
|||
Module Type
HET-450M72HA
Maximum Power (Pmax)
450W(STC)
340W(NOCT)
Open-circuit Voltage (Voc)
49.6V
46.8V
Short-circuit Current (Isc)
11.53A
9.28A
41.0V
38.7V
Maximum Power Current (Imp)
10.98A
8.80A
Module Efficiency(%)
20.2%
Power Tolerance
0~+5W
Standard Test Environment
Irradiance 1000W/m2, Cell Temperature 25℃，Spectrum AM 1.5
Maximum Power Voltage (Vmp)

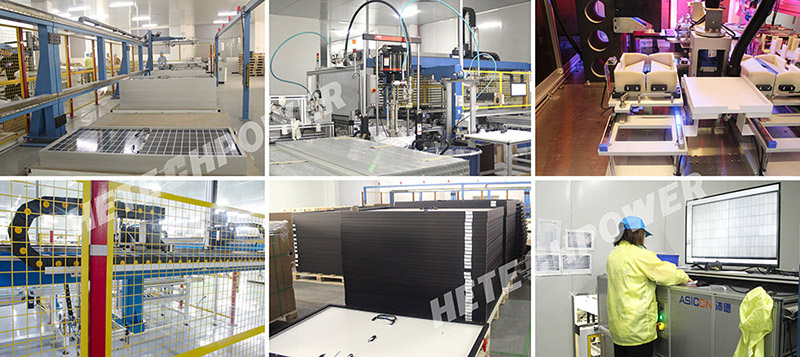

Productions:
Key Features:
1.Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
2.A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
3.Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
4.High power models with pre-wired quick-connect system with MC4 (PV-ST01) connectors.
To Parterners:
We are Chinese solar panel factory specialized in solar panel manufacturing since 2009.
Now our 60cells, 72cells, 120half cells, 144half cells, 132half cells, 156half cells ,9BB half cells standard solar panel
for solar power plant application are on a high promotion with very good price:
Production capacity: 500MW annual to ensure fast delivery.
More Products information pls contact with us mail :coco20.xu@gmail.com.
