The manufacturer Hetech Solar presents a flexible panel of 100W and 12V, made of monocrystalline silicon that incorporates a remarkable technology in the industry. This technology is a polymer called ETFE, which has multiple advantages that allow the panel to have greater resistance to heat, corrosion and UV rays.
Item No.:
HET-F100MMax Power:
100WWeight:
2kgsDimension:
1190*540*3mmCertification:
CEProduct Name

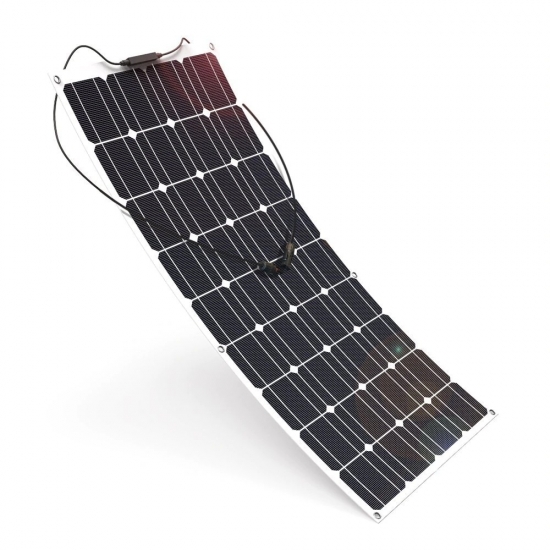

ETFE cover 100 Watt Flexible Solar Panel Bendable Solar Panel

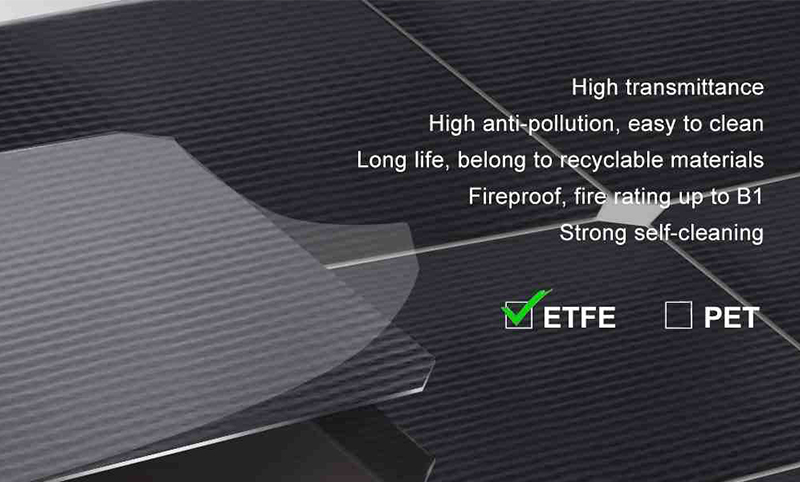

ETFE Advantage:
Long service life ,tear resistant ,corrosion resistant and high temperature resistance, excellent resistance to harsh environments.

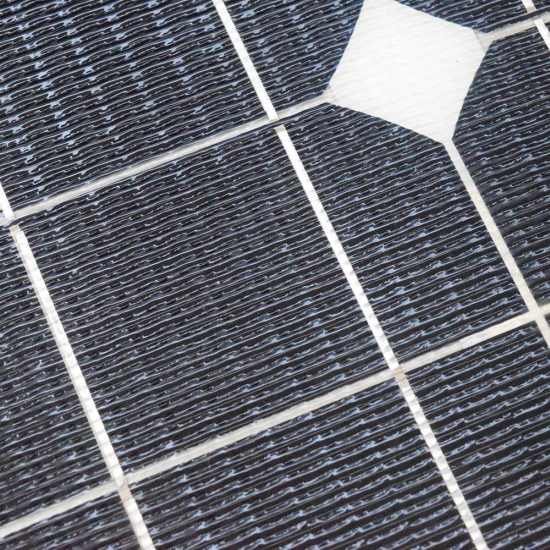

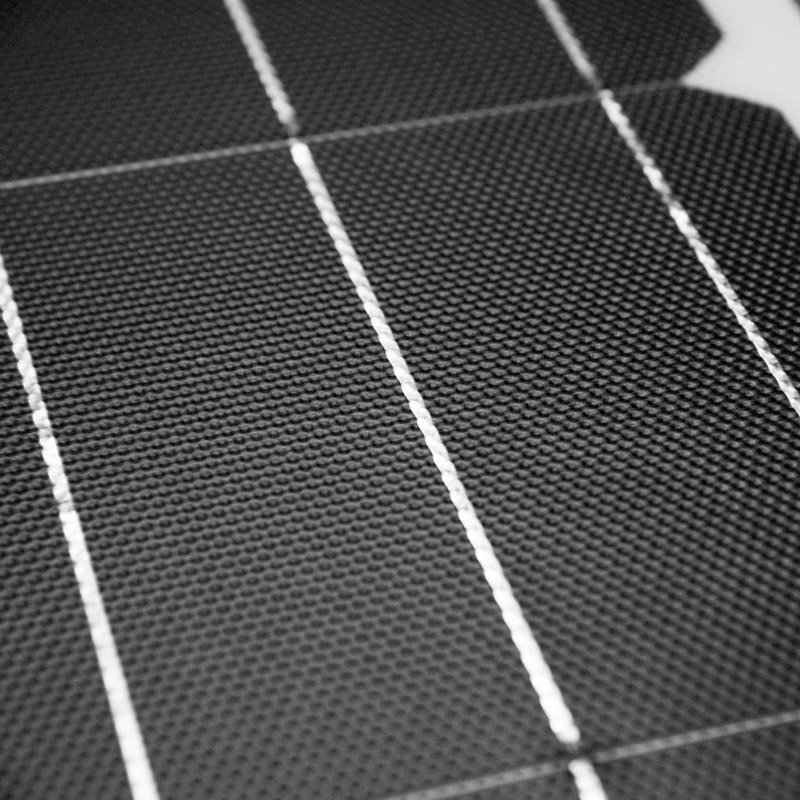

Featuring with comb structure which enhance 10% natural lighting and get more energy
Electrical Characteristics(STC):
|
Module Type |
HET-F60M |
HET-F80M |
HET-F100M |
HET-F150M |
|
Maximum Power (Pmax) |
60W |
80W |
100W |
150W |
|
Open-circuit Voltage (Voc) |
22.2V |
22.3V |
21.6V |
21.7V |
|
Short-circuit Current (Isc) |
3.45A |
4.52A |
5.78A |
5.53A |
|
Maximum Power Voltage (Vmp) |
18.1V |
18.4V |
18.2V |
18.3V |
|
Maximum Power Current (Imp) |
3.32A |
4.35A |
5.56A |
8.29A |
|
Size |
530*670*2.5mm |
530*670*2.5mm |
1190*540*3mm |
1480*670*3mm |
|
Power Tolerance |
0~+5W |
|||
|
Standard Test Environment |
Irradiance 1000W/m2, Cell Temperature 25℃，Spectrum AM 1.5 |
|||

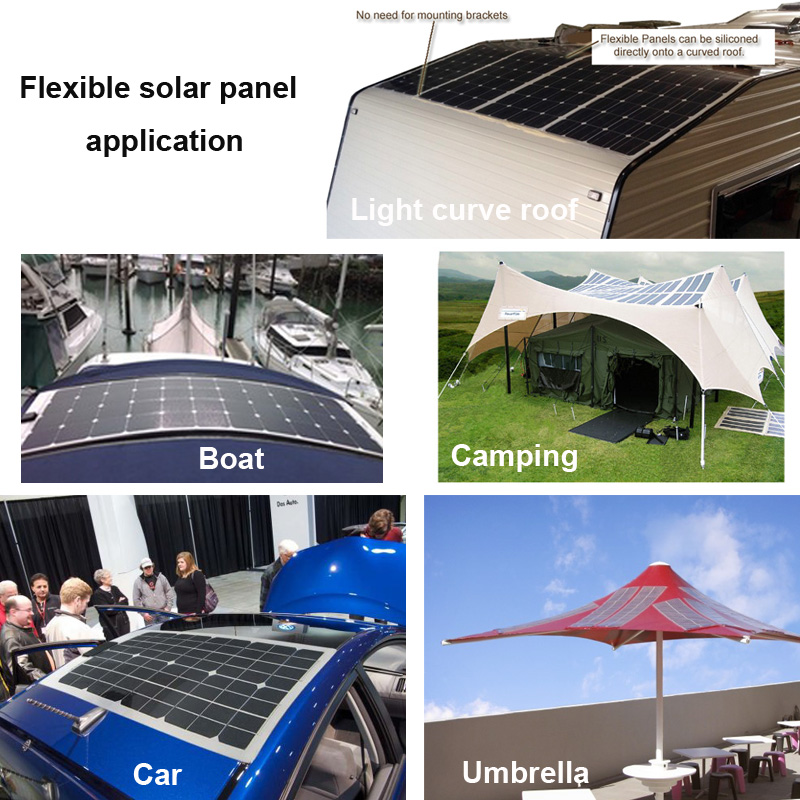

Applications:
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
High power 500W 96 cells mono solar panels. High efficiency MONO solar cell with positive tolerance only International quality management system with 100% panel power and EL test before shipment Fire test, Ammonia corrosion test, Salt mist corrosion resistance approved
HETECH full black color pv modules with 5bb perc mono solar cells, manufacture by perc half pv technology , high efficiency solar panel 400w 410w commonly used for solar power system and commercial solar plant, single solar panel power range 400w-410w based on 144 half cells.
High power PERC technology cells mono solar panels. PERC cell technology defines a solar cell architecture that differs from the standard cell architecture that has been in use for three decades and that is usually featured in all photovoltaic manuals. Hetech Solar Photovoltaic Solar Panel 385W. Premium Range with 21% Cell Efficiency.
9bb (busbar) Busbars distribute electricity with greater ease and flexibility. It is a thin strip of copper or aluminium between cells that conducts electricity which is called a busbar. It separates solar cells and conducts the direct current the cells collected from solar photon to the solar inverter, which converts the direct current into the useable current.
This expandable off-grid system comes with a 5,000 watt hybrid inverter pre-wired on a complete power center. This system is designed for easy expansion, so you can easily add another inverter if your power requirements grow over time.
HETECH black frame pv modules with 9bb perc mono solar cells, manufacture by perc half pv technology , high efficiency solar panels 440w 445w 450w commonly used for solar power system and commercial solar plant, single solar panel power range 440w-450w based on 144 half cells.
325W 5 busbar solar cell adopts new technology to improve the efficiency of modules , offers a better aesthetic appearance, making it perfect for rooftop installation.
1.Semi-flexible solar panel is used widely on yacht boat RV 2.Revolution on producing technology of solar panel cutting 70% weight from standard rigid solar panel 3.22%-23% High efficiency Sunpower® Solar cells from USA Sunpower Corporation
