Item No.:
HET-F110SMax Power:
110WWeight:
2kgsDimension:
1060*540*3mmCertification:
CE/CEC/FCC/CQC/ISO/ROHSPayment :
T/T, L/C, Paypal, Western UnionProduct Name

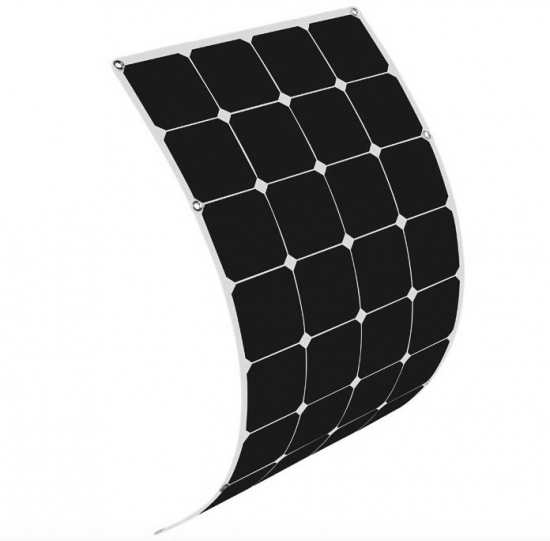

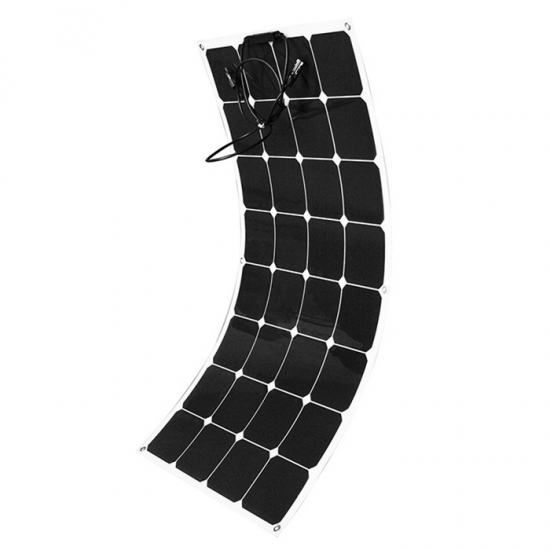

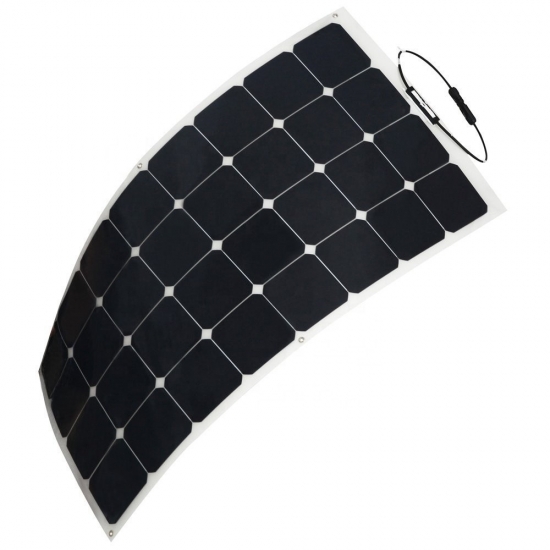

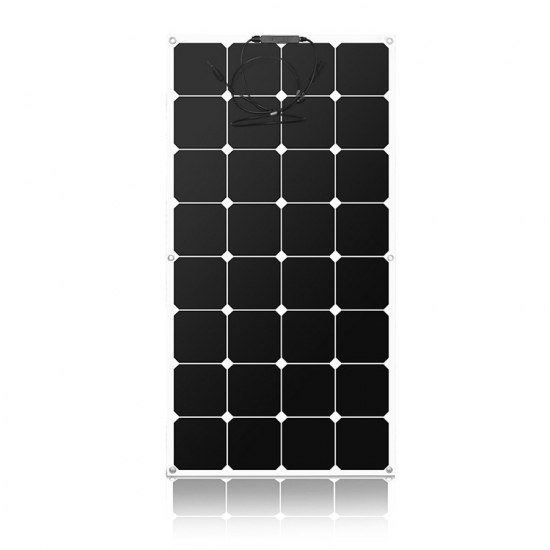

High Efficiency 110W 18V 12V Sunpower cell semi-flexible solar panel
Flexible solar panels are capable of meeting a wide range of applications such as curved roofs, recreational vehicles (RV), boats and any curvy surfaces. Some of these applications may be suitable for traditional mounting schemes, but not all of them.
Electrical Characteristics(STC):
|
Module Type |
HET-F80S |
HET-F110S |
HET-F120S |
HET-F140S |
|
Maximum Power (Pmax) |
80W |
110W |
120W |
140W |
|
Open-circuit Voltage (Voc) |
28.2V |
21.7V |
24.1V |
28.7V |
|
Short-circuit Current (Isc) |
3.60A |
6.42A |
6.20A |
6.17A |
|
Maximum Power Voltage (Vmp) |
23.1V |
17.8V |
20.1V |
23.6V |
|
Maximum Power Current (Imp) |
3.46A |
6.18A |
5.97A |
5.94A |
| Size |
950*415*2.5mm |
1060*540*3mm |
1190*540*3mm |
930*790*3mm |
|
Power Tolerance |
0~+5W |
|||
|
Standard Test Environment |
Irradiance 1000W/m2, Cell Temperature 25℃，Spectrum AM 1.5 |
|||
Applications:
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
HETECH full black color pv modules with 5bb perc mono solar cells, manufacture by perc half pv technology , high efficiency solar panel black solar panel 330w 340w commonly used for solar power system and commercial solar plant, single solar panel power range 330w-340w based on 120 half cells.
Big Size PV modules, are rational designed, excellent in workmanship, and have a stable performance MBB solar panels,power range covers 600W, are widely used in photovoltaic power stations.
Our solar power kits are complete systems, and include the racking and any equipment or Balance Of System components needed to generate power. Whether you're considering staying connected to the grid to save money, or living off grid for freedom and independence, we have the solar system for you!
Assembled with high-efficiency PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
Hetech mono PV module solutions are ideally suited to the evolving needs of today’s photovoltaics industry. Trusted by solar project developers, EPCs, installers and contractors worldwide, our monocrystalline solar modules are manufactured using best-in-class raw materials and subject to strict quality control.
HETECH full black color pv modules with 9bb perc mono solar cells, manufacture by perc half pv technology , high efficiency solar panels 440w 445w 450w commonly used for solar power system and commercial solar plant, single solar panel power range 440w-450w based on 144 half cells.
MonoPERCRight-angleCell solar panel. It is a grid tie module that ideal for rooftop installation with half cell arrangement of 144(6X24) per panel. The Hetech Modules designed with 5 busbar mono PERC half cell technology that decrease in current loss yields higher module efficiency.
Assembled with high-efficiency PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
