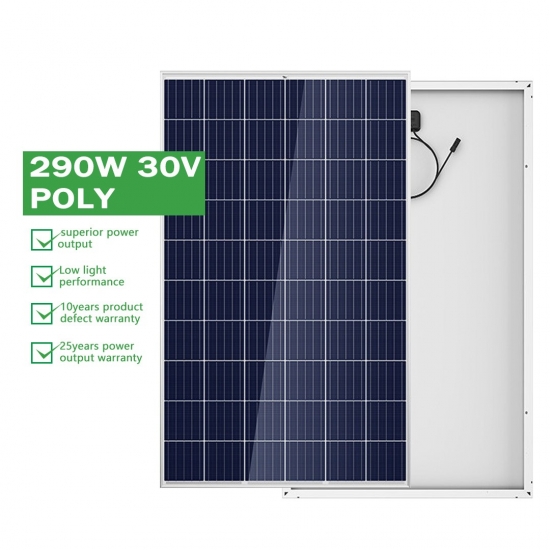

Hetech Polycrystalline Solar Panel is the key component to a system when going solar Off Grid system . These panels are relatively compact and are a breeze to set up. Whether for your home or a manufacture popurse, this panel can be a great start to your off-grid system! This panel has several uses including marine, and other off-grid applications.
Item No.:
HET-290P60AMax Power:
290WWeight:
18.5kgDimension:
1680*992*35mmWarranty:
25yearsCertification:
CE/FCC/ROHS/ISOPayment :
T/T, L/C, Paypal, Western UnionProducts Name:
290w poly solar panel with 60 cells
Quick Details:
Product Key Features
Solar Technology: Polycrystalline
Power Source: Solar
Recommended Environment: Outdoor
Features : Corrosion Resistant, All Daylight Conditions
Type: Solar Panel
Colour: Blue
Resistance Properties: Corrosion Resistant
Electrical Characteristics(STC):
|
Mechanical Characteristics |
||||
|
Front Glass |
3.2mm high transmission tempered glass |
|||
|
Encapsulation |
EVA |
|||
|
Cells |
60pcs 156×156mm Monocrystalline solar cells |
|||
|
Backsheet |
Composite film |
|||
|
Frame |
Anodized aluminum profile |
|||
|
Junction Box |
Rated current:20A,IP68,TUV |
|||
|
Cables |
length 900mm;customized length |
|||
|
Connectors |
Compatible with MC4 |
|||
|
Module Type |
HET-280P60A |
HET-285P60A |
HET-290P60A |
HET-295P60A |
|
Maximum Power (Pmax) |
280W |
285W |
290W |
295W |
|
Open-circuit Voltage (Voc) |
38.4V |
38.5V |
38.6V |
38.7V |
|
Short-circuit Current (Isc) |
9.29A |
9.39A |
9.44A |
9.52A |
|
Maximum Power Voltage (Vmp) |
31.6V |
31.8V |
32.0V |
32.2V |
|
Maximum Power Current (Imp) |
8.86A |
8.96A |
9.06A |
9.16A |
|
Module Efficiency(%) |
17.1% |
17.4% |
17.7% |
18.1% |
|
Power Tolerance |
0~+5W |
|||
|
Standard Test Environment |
Irradiance 1000W/m2, Cell Temperature 25℃，Spectrum AM 1.5 |
|||
Previous :
295w poly silicon solar panelNext :
285w poly solar panel with 60 cellsIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Hetech Solar Polycrystalline solar panels with PID resistance Technology (Potential-Induced Degradation) for safety against substantial power loss due to stray currents triggered by certain climate conditions.
Top quality solar panels from 260 to 400 watts. Competitively priced with specials available from time to time. Solar panels are generally in stock, ready to be shipped to you within 24 hours.
Polycrystalline solar panels generally have lower efficiencies than monocrystalline options, but their advantage is a lower price point. In addition, polycrystalline solar panels tend to have a blue hue instead of the black hue of monocrystalline panels. Power range from POLY 260W to POLY 400W.
The 60-cell module like every Hetech solar module has high-quality solar cells with highest efficiency at the best possible low light behaviour to ensure the best energy output.
Polycrystalline solar panels generally have lower efficiencies than monocrystalline options, but their advantage is a lower price point. In addition, polycrystalline solar panels tend to have a blue hue instead of the black hue of monocrystalline panels. Power range from POLY 260W to POLY 400W.
The 285W polycrystalline panels have a anodized aluminium frame for secure and convenient installation. They are durable and waterproof, making them ideal for both portable and more permanent installations.
Polycrystalline solar panels generally have lower efficiencies than monocrystalline options, but their advantage is a lower price point. In addition, polycrystalline solar panels tend to have a blue hue instead of the black hue of monocrystalline panels. Power range from POLY 260W to POLY 400W.
This expandable off-grid system comes with a 5,000 watt hybrid inverter pre-wired on a complete power center. This system is designed for easy expansion, so you can easily add another inverter if your power requirements grow over time.
