PV modules, are rational designed, excellent in workmanship, and have a stable performance 182MM solar cell solar panels,power range covers 530W-550W, are widely used in photovoltaic power stations.
Item No.:
HET-530M72MHMax Power:
530WWeight:
28.9kgDimension:
2774*1134*35mmWarranty:
25yearsCertification:
TUV/CE/CEC/FCC/CQC/ISO/ROHSPayment :
T/T, L/C, Paypal, Western Union
Products Name:

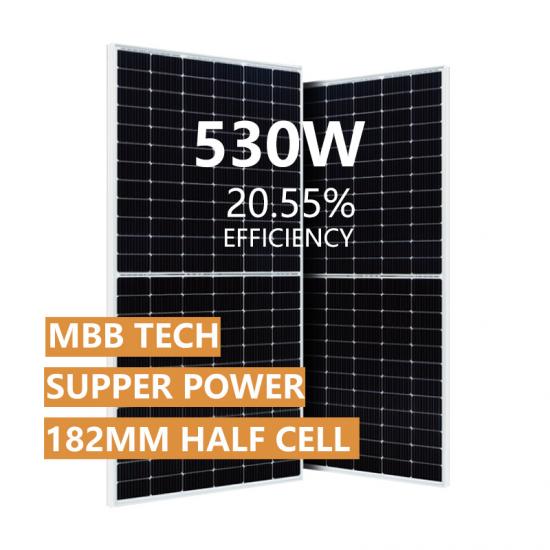

Super Power 530W Half Cell Perc Monocrystalline Solar Panel
Electrical Characteristics(STC):
Mechanical Characteristics |
||||
Front Glass |
3.2mm high transmission tempered glass |
|||
Encapsulation |
EVA |
|||
Cells |
144pcs 182×91mm Monocrystalline solar cells |
|||
Backsheet |
Composite film |
|||
Frame |
Anodized aluminum profile |
|||
Junction Box |
Rated current:15A,IP68,TUV |
|||
Cables |
length 300mm;customized length |
|||
Connectors |
Compatible with MC4 |
Module Type
HET-530M72HA
Maximum Power (Pmax)
530W(STC)
394W(NOCT)
Open-circuit Voltage (Voc)
49.26V
46.50V
Short-circuit Current (Isc)
13.71A
11.07A
40.56V
37.84V
Maximum Power Current (Imp)
13.07A
10.42A
Module Efficiency(%)
20.55%
Power Tolerance
0~+5W
Standard Test Environment
Irradiance 1000W/m2, Cell Temperature 25℃,Spectrum AM 1.5
Maximum Power Voltage (Vmp)
Application:
Specially designed for industrial, commercial and centralized ground power plants, a full range of component products match market demand.
Our Advantages:
1.OEM acceptable in MOQ order.
More Products information pls contact with us mail :coco20.xu@gmail.com.
