Use PERC type solar cells. High efficiency performance. 10 year Product Workmanship Warranty 25 year Linear Power Warranty.
Item No.:
HET-330S60AGMax Power:
330WWeight:
22.5kgDimension:
1684*996*35mmWarranty:
25yearsCertification:
CE/FCC/ROHS/ISOPayment :
T/T, L/C, Paypal, Western UnionProducts Name:

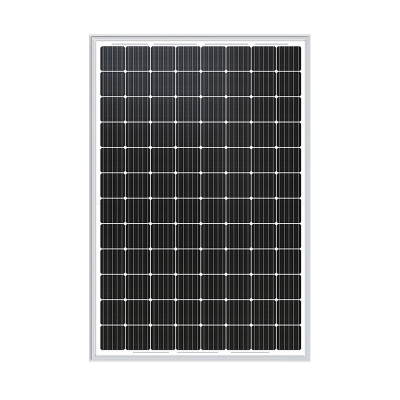

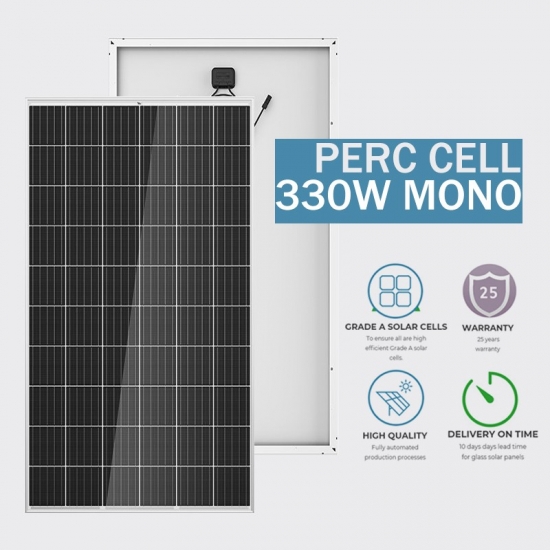

30V 60Cells 330watt Mono Photovoltaic Solar Panel
Specs/Features:
1. 330 W Module Output
2. Module Efficiency: 19.7%
3. Positive power tolerance of up to 10%
4. Snow load up to 2400 Pa
5. 25 Year Power Production Warranty
6. 25 Year Product Workmanship Warranty
Electrical Characteristics(STC):
|
Mechanical Characteristics |
||||
|
Front Glass |
3.2mm high transmission tempered glass |
|||
|
Encapsulation |
EVA |
|||
|
Cells |
60pcs 158×158mm Monocrystalline solar cells |
|||
|
Backsheet |
Composite film |
|||
|
Frame |
Anodized aluminum profile |
|||
|
Junction Box |
Rated current:20A,IP68,TUV |
|||
|
Cables |
length 900mm;customized length |
|||
|
Connectors |
Compatible with MC4 |
|||
|
Module Type |
HET-310S60A |
HET-315S60A |
HET-320S60A |
HET-330S60A |
|
Maximum Power (Pmax) |
310W |
315W |
320W |
330W |
|
Open-circuit Voltage (Voc) |
40.3V |
40.5V |
40.7V |
41.3V |
|
Short-circuit Current (Isc) |
10.04A |
10.11A |
10.18A |
10.32A |
|
Maximum Power Voltage (Vmp) |
32.6V |
32.9V |
33.2V |
33.7V |
|
Maximum Power Current (Imp) |
8.68A |
8.91A |
9.12A |
9.78A |
|
Module Efficiency(%) |
18.5% |
18.8% |
19.1% |
19.7% |
|
Power Tolerance |
0~+5W |
|||
|
Standard Test Environment |
Irradiance 1000W/m2, Cell Temperature 25℃，Spectrum AM 1.5 |
|||
More Products information pls contact with us mail :coco20.xu@gmail.com.
Previous :
310w Mono Photovoltaic Solar Panel For HomeNext :
Big Power 400w 72 cells Mono Solar PanelIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
High power 500W 96 cells mono solar panels. High efficiency MONO solar cell with positive tolerance only International quality management system with 100% panel power and EL test before shipment Fire test, Ammonia corrosion test, Salt mist corrosion resistance approved
High power PERC technology cells mono solar panels. Monocrystalline solar panels usually have the highest efficiency and power capacity out of all types of solar panels. Monocrystalline panel efficiencies can range from 17% to 22%.
Hetech Solar photovoltaic modules are designed for large electrical power requirements. With a 25- year warranty, PERC offers high-powered, reliable performance for both on- grid and off-grid solar projects.
Hetech mono PV module solutions are ideally suited to the evolving needs of today’s photovoltaics industry. Trusted by solar project developers, EPCs, installers and contractors worldwide, our monocrystalline solar modules are manufactured using best-in-class raw materials and subject to strict quality control.
Hetech solar monocrystalline PERC solar panels are available in white (higher power) and all-black (sleeker aesthetic) PV backsheet variants. They come with a standard 25-year warranty, which guarantees maximum performance throughout the lifetime of the PV system.

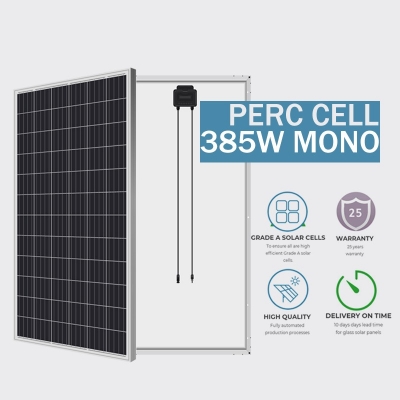

High power PERC technology cells mono solar panels. PERC cell technology defines a solar cell architecture that differs from the standard cell architecture that has been in use for three decades and that is usually featured in all photovoltaic manuals. Hetech Solar Photovoltaic Solar Panel 385W. Premium Range with 21% Cell Efficiency.
