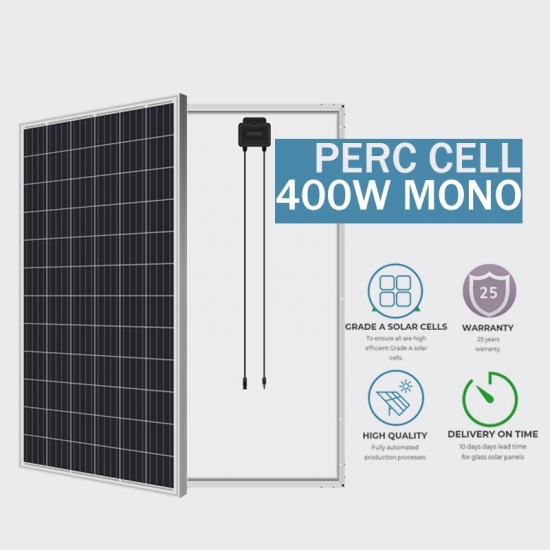

High power PERC technology cells mono solar panels.
Monocrystalline solar panels usually have the highest efficiency and power capacity out of all types of solar panels. Monocrystalline panel efficiencies can range from 17% to 22%.
Item No.:
HET-400S72AGMax Power:
400WWeight:
22.5kgDimension:
2008*996*35mmWarranty:
25yearsCertification:
CE/FCC/ROHS/ISOPayment :
T/T, L/C, Paypal, Western UnionProducts Name:
big power 400W 72cells mono solar panel
Quick Details:
Place of Origin:Zhengzhou, China
Weight: 22.5kg
Electrical Characteristics(STC):
|
Mechanical Characteristics |
||||
|
Front Glass |
3.2mm high transmission tempered glass |
|||
|
Encapsulation |
EVA |
|||
|
Cells |
72pcs 158×158mm Monocrystalline solar cells |
|||
|
Backsheet |
Composite film |
|||
|
Frame |
Anodized aluminum profile |
|||
|
Junction Box |
Rated current:20A,IP68,TUV |
|||
|
Cables |
length 900mm;customized length |
|||
|
Connectors |
Compatible with MC4 |
|||
|
Module Type |
HET-385S72A |
HET-390S72A |
HET-395S72A |
HET-400S72A |
|
Maximum Power (Pmax) |
385W |
390W |
395W |
400W |
|
Open-circuit Voltage (Voc) |
49.1V |
49.3V |
49.6V |
49.9V |
|
Short-circuit Current (Isc) |
10.17A |
10.22A |
10.27A |
10.33A |
|
Maximum Power Voltage (Vmp) |
39.9V |
40.2V |
40.5V |
40.8V |
|
Maximum Power Current (Imp) |
9.65A |
9.70A |
9.76A |
9.81A |
|
Module Efficiency(%) |
19.3% |
19.5% |
19.8% |
20.00% |
|
Power Tolerance |
0~+5W |
|||
|
Standard Test Environment |
Irradiance 1000W/m2, Cell Temperature 25℃，Spectrum AM 1.5 |
|||
To Parterners:
We are Chinese solar panel factory specialized in solar panel manufacturing since 2009.
Now our 60cells, 72cells, 120half cells, 144half cells, 132half cells, 156half cells ,9BB half cells standard solar panel
for solar power plant application are on a high promotion with very good price:
Production capacity: 500MW annual to ensure fast delivery.
Our Advantages:
1.OEM acceptable in MOQ order.
2.Quality Promission, We are not the cheapest but the only one who can make sure the Europe level quality by refunding.
3.Quick delivery based our own factory, some Germany customer solar panels in stock.1000PCS less in 15days.
4.Flexible payment terms.
More Products information pls contact with us mail :coco20.xu@gmail.com.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
High power 500W 96 cells mono solar panels. High efficiency MONO solar cell with positive tolerance only International quality management system with 100% panel power and EL test before shipment Fire test, Ammonia corrosion test, Salt mist corrosion resistance approved
Use PERC type solar cells. High efficiency performance. 10 year Product Workmanship Warranty 25 year Linear Power Warranty.
Hetech Solar photovoltaic modules are designed for large electrical power requirements. With a 25- year warranty, PERC offers high-powered, reliable performance for both on- grid and off-grid solar projects.
Hetech mono PV module solutions are ideally suited to the evolving needs of today’s photovoltaics industry. Trusted by solar project developers, EPCs, installers and contractors worldwide, our monocrystalline solar modules are manufactured using best-in-class raw materials and subject to strict quality control.
Hetech solar monocrystalline PERC solar panels are available in white (higher power) and all-black (sleeker aesthetic) PV backsheet variants. They come with a standard 25-year warranty, which guarantees maximum performance throughout the lifetime of the PV system.
High power PERC technology cells mono solar panels. PERC cell technology defines a solar cell architecture that differs from the standard cell architecture that has been in use for three decades and that is usually featured in all photovoltaic manuals. Hetech Solar Photovoltaic Solar Panel 385W. Premium Range with 21% Cell Efficiency.
High power PERC technology cells mono solar panels. PERC cell technology defines a solar cell architecture that differs from the standard cell architecture that has been in use for three decades and that is usually featured in all photovoltaic manuals. As of today, the vast majority of crystalline solar cells produced follow the structure presented hereunder.
High power PERC technology cells mono solar panels. PERC cell technology defines a solar cell architecture that differs from the standard cell architecture that has been in use for three decades and that is usually featured in all photovoltaic manuals. As of today, the vast majority of crystalline solar cells produced follow the structure presented hereunder.
