Hetech mono PV module solutions are ideally suited to the evolving needs of today’s photovoltaics industry. Trusted by solar project developers, EPCs, installers and contractors worldwide, our monocrystalline solar modules are manufactured using best-in-class raw materials and subject to strict quality control.
Item No.:
HET-315S60AGMax Power:
315WWeight:
18.7kgDimension:
1684*996*35mmWarranty:
25yearsCertification:
CE/FCC/ROHS/ISOPayment :
T/T, L/C, Paypal, Western UnionProducts Name:

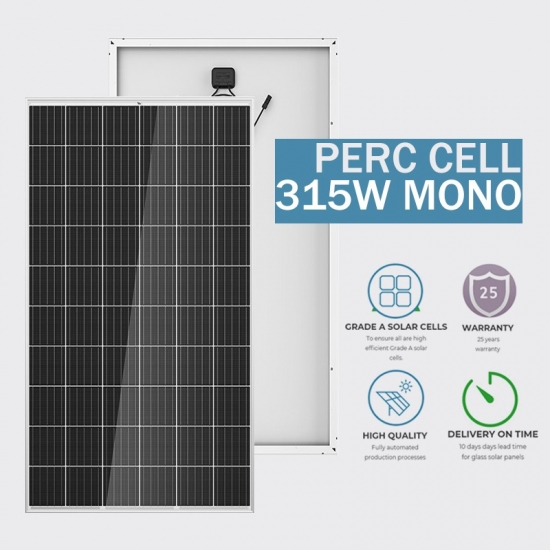

High efficiency 315w monocrystalline solar panel
Advantages:
1. High Cell-To-Module ratio through precise cell conversion efficiency sorting.
2. Excellent electrical long-term stability and reliability.
3. Low breakage rate through the use of highly qualified and stable wafers.
4. High quality homogeneous appearance by sorting into defined color classes.
5. 100% screened for reverse current and shunt resistance.
6. Offers excellent solderability through the use of quality conductive materials.
Electrical Characteristics(STC):
|
Mechanical Characteristics |
||||
|
Front Glass |
3.2mm high transmission tempered glass |
|||
|
Encapsulation |
EVA |
|||
|
Cells |
60pcs 158×158mm Monocrystalline solar cells |
|||
|
Backsheet |
Composite film |
|||
|
Frame |
Anodized aluminum profile |
|||
|
Junction Box |
Rated current:20A,IP68,TUV |
|||
|
Cables |
length 900mm;customized length |
|||
|
Connectors |
Compatible with MC4 |
|||
|
Module Type |
HET-310S60A |
HET-315S60A |
HET-320S60A |
HET-325S60A |
|
Maximum Power (Pmax) |
310W |
315W |
320W |
325W |
|
Open-circuit Voltage (Voc) |
40.3V |
40.5V |
40.7V |
41.0V |
|
Short-circuit Current (Isc) |
10.04A |
10.11A |
10.18A |
10.25A |
|
Maximum Power Voltage (Vmp) |
32.6V |
32.9V |
33.2V |
33.4V |
|
Maximum Power Current (Imp) |
8.68A |
8.91A |
9.12A |
9.21A |
|
Module Efficiency(%) |
18.5% |
18.8% |
19.1% |
19.4% |
|
Power Tolerance |
0~+5W |
|||
|
Standard Test Environment |
Irradiance 1000W/m2, Cell Temperature 25℃，Spectrum AM 1.5 |
|||
To Parterners:
We are Chinese solar panel factory specialized in solar panel manufacturing since 2009.
Now our 60cells, 72cells, 120half cells, 144half cells, 132half cells, 156half cells ,9BB half cells standard solar panel
for solar power plant application are on a high promotion with very good price:
Production capacity: 500MW annual to ensure fast delivery.
More Products information pls contact with us mail :coco20.xu@gmail.com.
