3kw Hybrid solar power system

The point of this system is whenever the sun shines (and even in overcast weather), the solar cells generate electricity for battery storage. The inverter converts the DC electricity into 22V/240V AC electricity, which can then be used by the property/household.

  • Item No.:

    HET-HYS3K
  • Mounting Type:

    Ground Mounting/Roof mounting/Carport Mounting
  • Output Frequency:

    50HZ/60HZ
  • Output Voltage (V):

    America 110V ~130V/Asia&Europe 220V~230V
  • Work Time (h):

    24HRS/DAY
  • Battery:

    lithium/lead-acid
  • Product Details

Product Name

3kw Hybrid solar power system

3KW HYBRID SOLAR POWER SYSTEM

Fetures:

This on&off grid hybrid solar system in fact is a grid tie solar system but with emergency power supply use.

It is installed in the area which grid tie solar system is allowed. It enables to sell electricity to Grid by

using a smart meter to record the power producing and daily consumption, also with a battery backup for emergency power use.

Advantages:
It can make both stand alone power use from your battery backup, also can feed/sell electricity to your grid power.


Product Parameters

5KW On Grid Solar System Equipment

NO.

Item

Type

Quantity

1

Solar Panel

350w Solar Panel

9pcs

2

Solar Inverter

Growatt 3kw Hybrid Grid Solar Inverter, Single phase

1 set

3

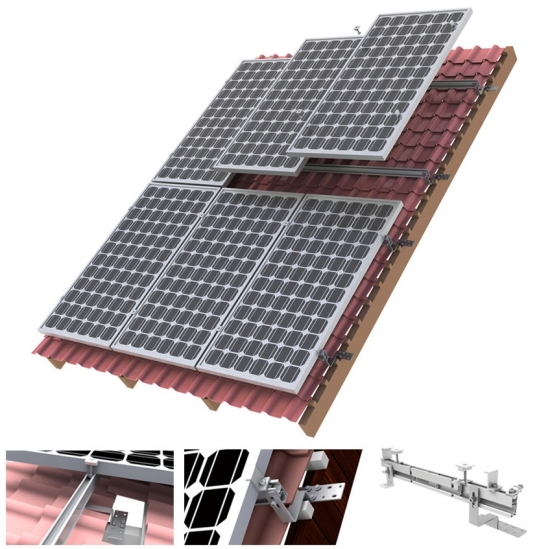

Mounting Bracket

Monitoring Device

Full set

4

PV cable

Roof/Ground Install (Customized)

Full set

5

Control box

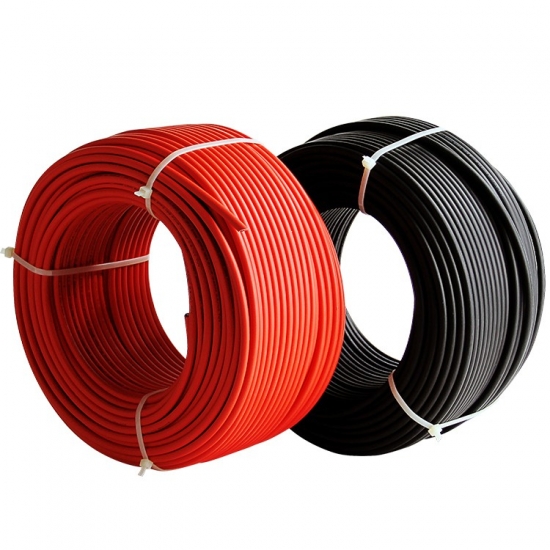

4mm2 PV Cable

1 set

6

Other accessories

MC4 Connector/breaker/tools

Full set

7

Optional

WiFi module

1 set

8

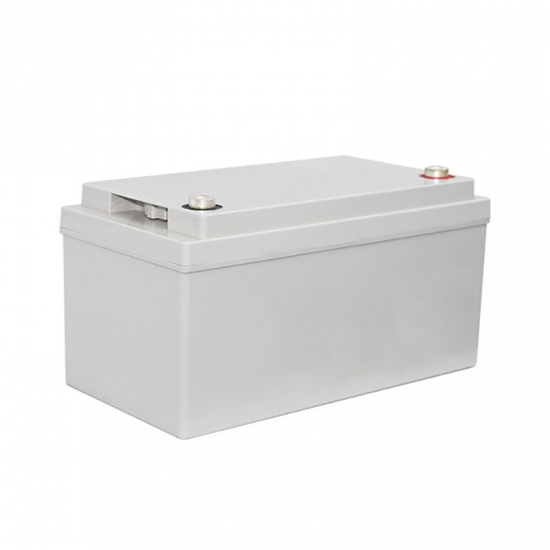

Battery

Gel AGM battery

Maintenance-free

Full set

9

Standard Wooded Package + System Connecting Drawings (Easy Installing)

System Capacity could be adjustable according customer's situation

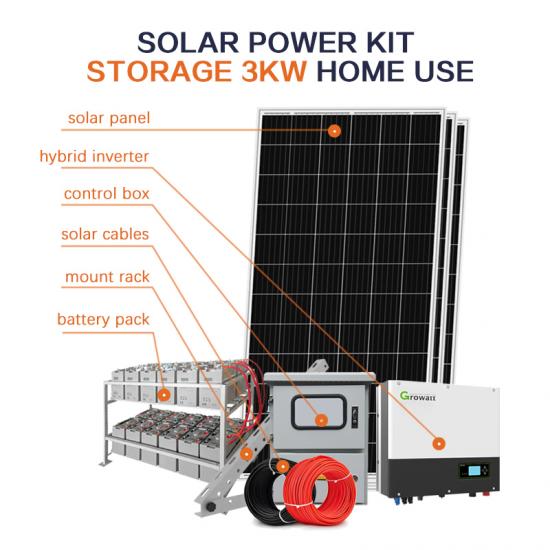

3KW HYBRID SOLAR POWER SYSTEM COMPONENTS


SYSTEM WIRING DIAGRAM


3KW HYBRID SOLAR POWER SYSTEM CONNECTIONS
