Hetech Solar Polycrystalline solar panels with PID resistance Technology (Potential-Induced Degradation) for safety against substantial power loss due to stray currents triggered by certain climate conditions.
Item No.:
HET-260P60AMax Power:
260WWeight:
18.5kgDimension:
1640*992*35mmWarranty:
25yearsCertification:
CE/FCC/ROHS/ISOPayment :
T/T, L/C, Paypal, Western UnionProducts Name:

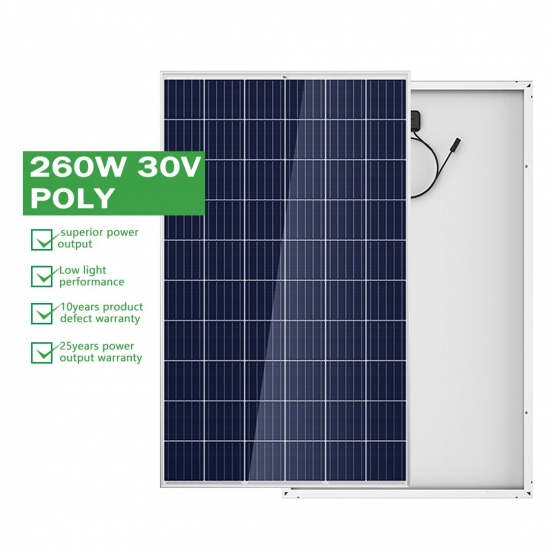

260 watts poly solar panel
Features:
1. Poly crystalline Cells type Panel
2. 25 years performance warranty.
3. Compliance to IEC standards
4. Best in Class conversion efficiency
5. Anti-reflective coating and back surface (BSF) for more light absorption
6. Advanced EVA (ethyl vinyl acetate) encapsulation to give better protection to modules
7. High strength light-weight aluminum frame design for high torsion resistance against winds and snow loads
8. Excellent Low light performance in low visibility in clouds, evening, and morning.
Electrical Characteristics(STC):
|
Mechanical Characteristics |
||||
|
Front Glass |
3.2mm high transmission tempered glass |
|||
|
Encapsulation |
EVA |
|||
|
Cells |
60pcs 156×156mm Monocrystalline solar cells |
|||
|
Backsheet |
Composite film |
|||
|
Frame |
Anodized aluminum profile |
|||
|
Junction Box |
Rated current:20A,IP68,TUV |
|||
|
Cables |
length 900mm;customized length |
|||
|
Connectors |
Compatible with MC4 |
|||
|
Module Type |
HET-260P60A |
HET-265P60A |
HET-270P60A |
HET-275P60A |
|
Maximum Power (Pmax) |
260W |
265W |
270W |
275W |
|
Open-circuit Voltage (Voc) |
38.0V |
38.1V |
38.2V |
38.3V |
|
Short-circuit Current (Isc) |
9.01A |
9.08A |
9.15A |
9.22A |
|
Maximum Power Voltage (Vmp) |
30.8V |
31.0V |
31.2V |
31.4V |
|
Maximum Power Current (Imp) |
8.44A |
8.55A |
8.65A |
8.76A |
|
Module Efficiency(%) |
15.9% |
16.2% |
16.5% |
16.8% |
|
Power Tolerance |
0~+5W |
|||
|
Standard Test Environment |
Irradiance 1000W/m2, Cell Temperature 25℃，Spectrum AM 1.5 |
|||
More Products information pls contact with us mail :coco20.xu@gmail.com.
Previous :
265 watts 60 cells poly solar moduleIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Top quality solar panels from 260 to 400 watts. Competitively priced with specials available from time to time. Solar panels are generally in stock, ready to be shipped to you within 24 hours.
Polycrystalline solar panels generally have lower efficiencies than monocrystalline options, but their advantage is a lower price point. In addition, polycrystalline solar panels tend to have a blue hue instead of the black hue of monocrystalline panels. Power range from POLY 260W to POLY 400W.
The 60-cell module like every Hetech solar module has high-quality solar cells with highest efficiency at the best possible low light behaviour to ensure the best energy output.
Polycrystalline solar panels generally have lower efficiencies than monocrystalline options, but their advantage is a lower price point. In addition, polycrystalline solar panels tend to have a blue hue instead of the black hue of monocrystalline panels. Power range from POLY 260W to POLY 400W.
The 285W polycrystalline panels have a anodized aluminium frame for secure and convenient installation. They are durable and waterproof, making them ideal for both portable and more permanent installations.
Hetech Polycrystalline Solar Panel is the key component to a system when going solar Off Grid system . These panels are relatively compact and are a breeze to set up. Whether for your home or a manufacture popurse, this panel can be a great start to your off-grid system! This panel has several uses including marine, and other off-grid applications.
Polycrystalline solar panels generally have lower efficiencies than monocrystalline options, but their advantage is a lower price point. In addition, polycrystalline solar panels tend to have a blue hue instead of the black hue of monocrystalline panels. Power range from POLY 260W to POLY 400W.
The grid tie solar power system is the most popular and effective ways to produce renewable energy. The panels are typically placed on the roof or in the yard where they capture the sun’s energy and convert it into electricity. And we depending on your latitude and the orientation of the panels,calculating the watts per square foot.
