The Flexible solar panel has obtained multiple positive reviews due to its efficiency (21%), quality, and characteristics. This makes it a perfect option for any type of installation, especially for the travel or camping experience, thanks to its lightweight design.
Item No.:
HET-F150Max Power:
150WWeight:
3.4kgsDimension:
1480*670*3mmCertification:
CE/CEC/FCC/CQC/ISO/ROHSPayment :
T/T, L/C, Paypal, Western UnionProduct Name

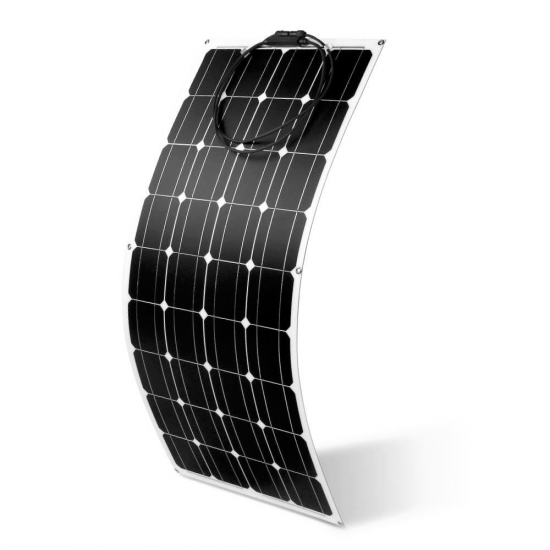

150 Watt Flexible Monocrystalline High Efficiency Solar Panel
Electrical Characteristics(STC):
|
Module Type |
HET-F100 |
HET-F150 |
HET-F180 |
HET-F200 |
|
Maximum Power (Pmax) |
100W |
150W |
180W |
200W |
|
Open-circuit Voltage (Voc) |
21.6V |
21.7V |
23.4V |
44.5V |
|
Short-circuit Current (Isc) |
5.78A |
5.53A |
9.75A |
5.70A |
|
Maximum Power Voltage (Vmp) |
18.21V |
18.31V |
19.2V |
36.5V |
|
Maximum Power Current (Imp) |
5.56A |
8.29A |
9.38A |
5.48A |
|
Size |
1190*540*3mm |
1480*670*3mm |
1480*670*3mm |
1580*790*3mm |
|
Power Tolerance |
0~+5W |
|||
|
Standard Test Environment |
Irradiance 1000W/m2, Cell Temperature 25℃，Spectrum AM 1.5 |
|||
PET & ETFE:
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
9bb (busbar) Busbars distribute electricity with greater ease and flexibility. It is a thin strip of copper or aluminium between cells that conducts electricity which is called a busbar. It separates solar cells and conducts the direct current the cells collected from solar photon to the solar inverter, which converts the direct current into the useable current.
HETECH full black color pv modules with 5bb perc mono solar cells, manufacture by perc half pv technology , high efficiency solar panel 330w 340w commonly used for solar power system and commercial solar plant, single solar panel power range 330w-340w based on 120 half cells.
Top quality solar panels from 260 to 400 watts. Competitively priced with specials available from time to time. Solar panels are generally in stock, ready to be shipped to you within 24 hours.
Get independence from rising electricity prices and reduce your monthly bills with your own home solar energy.
The grid tie solar power system is the most popular and effective ways to produce renewable energy. The panels are typically placed on the roof or in the yard where they capture the sun’s energy and convert it into electricity. And we depending on your latitude and the orientation of the panels,calculating the watts per square foot.
Assembled with high-efficiency PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
Our 340W solar panel is the most powerful, if you are looking for faster power generation this solar module will deliver. The high wattage output combined with high efficiency monocrystalline cells make this solar panel of particular interest for motorhome uses, static caravans, mobile homes, where larger power requirements are generally required.
Hetech solar monocrystalline PERC solar panels are available in white (higher power) and all-black (sleeker aesthetic) PV backsheet variants. They come with a standard 25-year warranty, which guarantees maximum performance throughout the lifetime of the PV system.
To be leader of global manufacturer of high-performance PV products.
For inquiries about our products or pricelist, please leave to us and we will be in touch within 24 hours.
