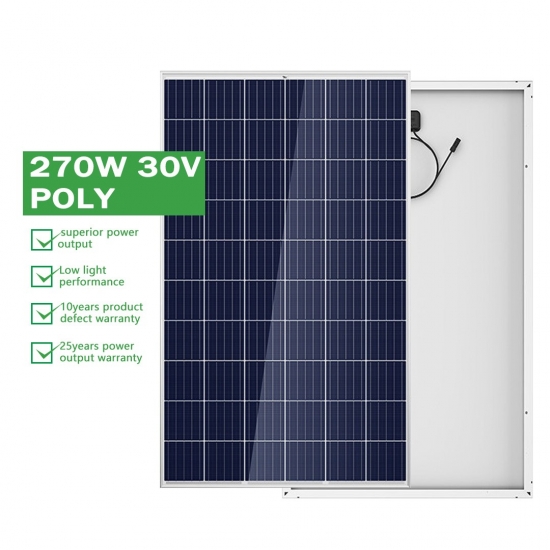

270w 30V poly solar panel

Polycrystalline solar panels generally have lower efficiencies than monocrystalline options, but their advantage is a lower price point.
In addition, polycrystalline solar panels tend to have a blue hue instead of the black hue of monocrystalline panels.
Power range from POLY 260W to POLY 400W.

Item No.:
HET-270P60A
Max Power:
270W
Weight:
18.5kg
Dimension:
1640*992*35mm
Warranty:
25years
Certification:
CE/FCC/ROHS/ISO
Payment :
T/T, L/C, Paypal, Western Union

Product Details

Products Name:

270w 30V poly solar panel

Quick Details:

Place of Origin:Henan, China
Type: Polycrystalline Solar Panel, Solar Panel
Size:1640*992*35mm
Certificate:TUV CE IEC ISO CQC, TUV/IEC61215/IEC61730/CEC/CE/ISO
Warranty:25 Yeas
Application:Roofing System

Electrical Characteristics(STC):

Mechanical Characteristics
Front Glass	3.2mm high transmission tempered glass
Encapsulation	EVA
Cells	60pcs 156×156mm Monocrystalline solar cells
Backsheet	Composite film
Frame	Anodized aluminum profile
Junction Box	Rated current:20A,IP68,TUV
Cables	length 900mm;customized length
Connectors	Compatible with MC4

Module Type	HET-260P60A	HET-265P60A	HET-270P60A	HET-275P60A
Maximum Power (Pmax)	260W	265W	270W	275W
Open-circuit Voltage (Voc)	38.0V	38.1V	38.2V	38.3V
Short-circuit Current (Isc)	9.01A	9.08A	9.15A	9.22A
Maximum Power Voltage (Vmp)	30.8V	31.0V	31.2V	31.4V
Maximum Power Current (Imp)	8.44A	8.55A	8.65A	8.76A
Module Efficiency(%)	15.9%	16.2%	16.5%	16.8%
Power Tolerance	0~+5W
Standard Test Environment	Irradiance 1000W/m2, Cell Temperature 25℃，Spectrum AM 1.5

Our Advantages:

01.5 main grid photovoltaic cell

More uniform current collection capacity, reducing the current heat loss of the battery cells inside the

module; beautiful appearance, more suitable for roof installation

02. High output power

The output power of 60 polycrystalline modules is up to 300W (the conversion efficiency of the module

iS up to 17.78%)

03. Anti-PID characteristics

Ensure that Kaishin components produced on a large scale pass the PID (potential induced decay) test

04. Low light performance

Through the use of excellent glass and cell surface texturing technology to achieve excellent perfor-

mance in low light environments

05. Load capacity

The whole assembly has passed 3600pa wind load and 5400pa snow load certification

06. Adaptability to harsh environments

TUV test certification passed high salt mist and high ammonia corrosion test

More Products information pls contact with us mail :coco20.xu@gmail.com.
