Assembled with high-efficiency PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
Item No.:
HET-440M72AHMax Power:
440WWeight:
24.5kgDimension:
2115*1052*35mmWarranty:
25yearsCertification:
TUV/CE/CEC/FCC/CQC/ISO/ROHSPayment :
T/T, L/C, Paypal, Western UnionProducts Name:

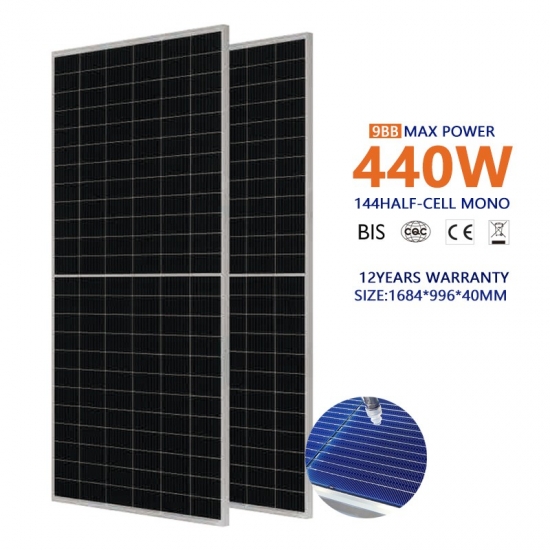

9BB 144PCS 9BB solar cells for BIPV 440W half cell solar panel
Electrical Characteristics (STC)
|
Module Type |
HET-435M72HA |
HET-440M72HA |
HET-445M72HA |
HET-450M72HA |
|
Maximum Power (Pmax) |
435W |
440W |
445W |
450W |
|
Open-circuit Voltage (Voc) |
49.0V |
49.2V |
49.4V |
49.6V |
|
Short-circuit Current (Isc) |
11.31A |
11.39A |
11.46A |
11.53A |
|
Maximum Power Voltage (Vmp) |
40.5V |
40.7V |
40.8V |
41.0V |
|
Maximum Power Current (Imp) |
10.74A |
10.82A |
10.90A |
10.98A |
|
Module Efficiency(%) |
19.6% |
19.8% |
20.0% |
20.2% |
|
Power Tolerance |
0~+5W |
|||
|
Standard Test Environment |
Irradiance 1000W/m2, Cell Temperature 25℃，Spectrum AM 1.5 |
|||
Packing details
|
Container |
20GP |
40GP |
40HC |
|
Pcs/pallet |
30 |
30 |
30 |
|
Pallet/container |
5 |
11 |
22 |
|
Pcs/container |
150 |
330 |
660 |
To parterners:
Our advatages:
1-OEM acceptable in MOQ order.
2-Quality Promission, We are not the cheapest but the only one who can make sure the Europe level quality by refunding.
3-Quick delivery based our own factory, some Germany customer solar panels in stock.1000PCS less in 15days.
4-Flexible payment terms according to the quantity.
More Products information pls contact with us mail:coco20.xu@gmail.com.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Monocrystalline 9BB half cell solar panel 420-450W 144cells ,high power, anti-hotspot, on grid system, off grid system, residencial solar system
Assembled with high-efficiency PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
Assembled with high-efficiency PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
Assembled with high-efficiency PERC cells, Applications: Grid-tie, hybrid systems, off-grid, caravans, motorhomes.
Hetech 9BB solar model is also a great option to consider to power your appliances. Designed with 9BB monocrystalline cells ,power ranges from 340W to 440W that is good enough to fit high power need.
Assembled with multi-busbar (9BB) PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk.
9bb (busbar) Busbars distribute electricity with greater ease and flexibility. It is a thin strip of copper or aluminium between cells that conducts electricity which is called a busbar. It separates solar cells and conducts the direct current the cells collected from solar photon to the solar inverter, which converts the direct current into the useable current.
9BB half cell solar panel 340-375W 120cells ,high power,anti-hotspot,solar plant used,residencial solar power system
