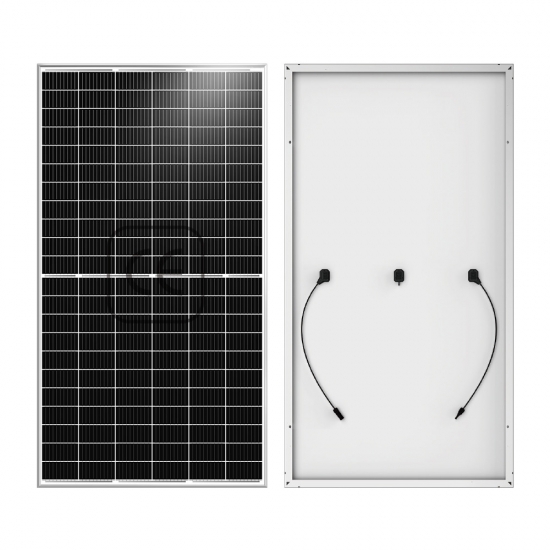

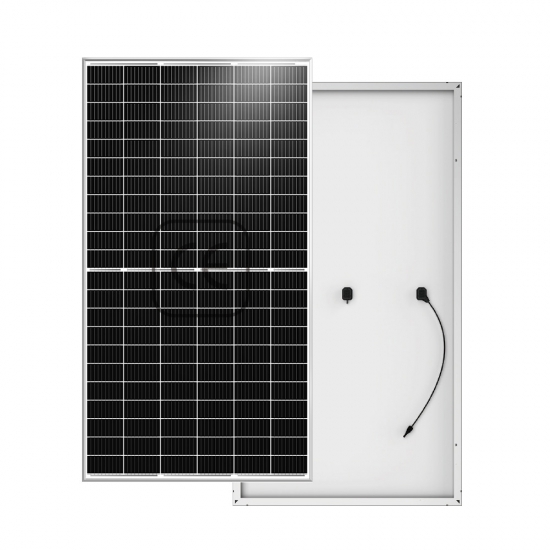

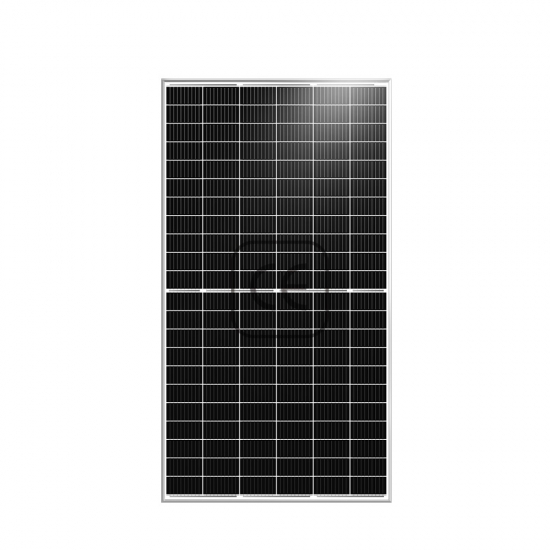

Monocrystalline 9BB half cell solar panel 420-450W 144cells ,high power, anti-hotspot, on grid system, off grid system, residencial solar system
Item No.:
HET-450M72AHMax Power:
450WWeight:
24.5kgDimension:

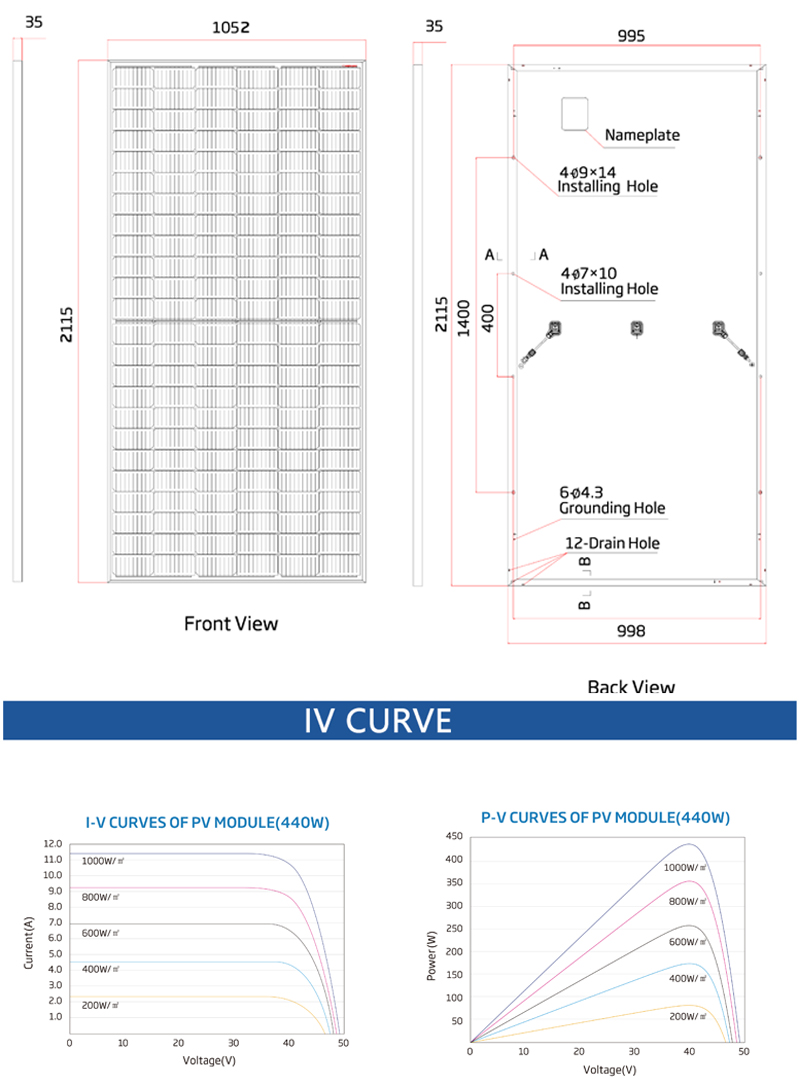

2115*1052*35mmWarranty:
25yearsCertification:
TUV/CE/CEC/FCC/CQC/ISO/ROHSPayment :
T/T, L/C, Paypal, Western UnionProducts Name:
9BB half cell solar panel 430W 435W 440W 450W 144cells MONO PERC
Features:
1. High module conversion efficiency up to 18.55% by using Passivated Emmiter Rear Contact (PERC) technology.
2. Low degradation and excellent performance under high temperature and low light conditions.
3. Robust aluminum frame ensures the modules to withstand wind loads up to 2400Pa and snow loads up to 5400Pa.
4. High reliability against extreme environmental conditions (passing salt mist,ammonia and hail tests).
5. Potential induced degradation (PID) resistance.
6. Positive power tolerance of 0 ~ +3 %.
Electrical Characteristics (STC)
|
Module Type |
HET-435M72HA |
HET-440M72HA |
HET-445M72HA |
HET-450M72HA |
|
Maximum Power (Pmax) |
435W |
440W |
445W |
450W |
|
Open-circuit Voltage (Voc) |
49.0V |
49.2V |
49.4V |
49.6V |
|
Short-circuit Current (Isc) |
11.31A |
11.39A |
11.46A |
11.53A |
|
Maximum Power Voltage (Vmp) |
40.5V |
40.7V |
40.8V |
41.0V |
|
Maximum Power Current (Imp) |
10.74A |
10.82A |
10.90A |
10.98A |
|
Module Efficiency(%) |
19.6% |
19.8% |
20.0% |
20.2% |
|
Power Tolerance |
0~+5W |
|||
|
Standard Test Environment |
Irradiance 1000W/m2, Cell Temperature 25℃，Spectrum AM 1.5 |
|||
Product details
 |
 |
 |
||
|
EVA
High permeability EVA, gel content provides good encapsulation, protects cells from vibration and long durability.
|
SOLAR CELL 5BB, 6BB, 9BB are available 158.75, 166, 182, 210 cells High efficiency cells Anti-Pid |
FRAME
35mm 40mm anodized aluminum alloy
Black/silver optional
|
||
 |
 |
|
||
|
JUNCTION BOX
IP 68 rated waterproof
Innovative full glue filling
Vertical / horizontal length optional
|
Compatible with MC4
MC4 compatible/MC4 EVO2/TS4 *500N tensile strength
Female/male/fuse
|
LABEL
Waterproof custom label
OEM logo
Professional silver
|
||

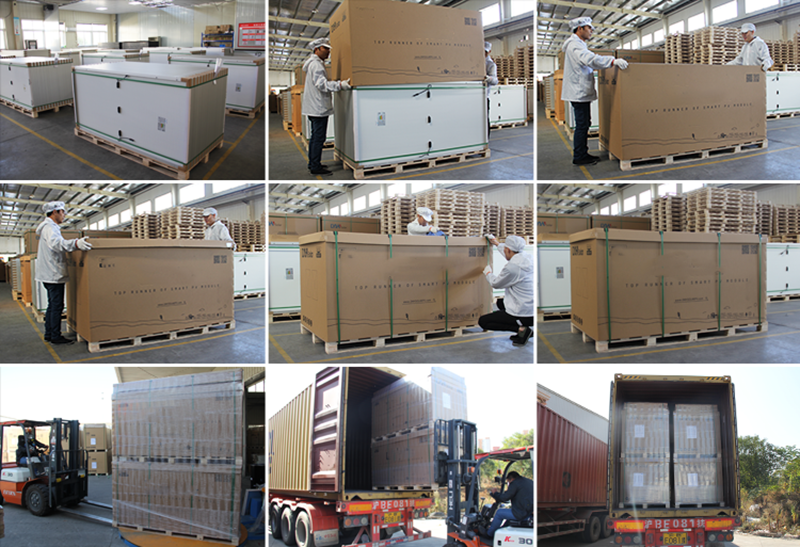

Packing details
|
Container |
20GP |
40GP |
40HC |
|
Pcs/pallet |
30 |
30 |
30 |
|
Pallet/container |
5 |
11 |
22 |
|
Pcs/container |
150 |
330 |
660 |
Previous :
445W photovoltaic solar module Mono 9BB Half Cell Solar Power PanelNext :
430W Solar Panel Half Cut 9BB 166mm Cells solar panelsIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Assembled with high-efficiency PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
Assembled with high-efficiency PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
Assembled with high-efficiency PERC cells, Applications: Grid-tie, hybrid systems, off-grid, caravans, motorhomes.
Assembled with high-efficiency PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
Hetech 9BB solar model is also a great option to consider to power your appliances. Designed with 9BB monocrystalline cells ,power ranges from 340W to 440W that is good enough to fit high power need.
Assembled with multi-busbar (9BB) PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk.
9bb (busbar) Busbars distribute electricity with greater ease and flexibility. It is a thin strip of copper or aluminium between cells that conducts electricity which is called a busbar. It separates solar cells and conducts the direct current the cells collected from solar photon to the solar inverter, which converts the direct current into the useable current.
