Assembled with high-efficiency PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
Item No.:
HET-450M72AHMax Power:
450WWeight:
24.5kgDimension:
2115*1052*35mmWarranty:
25yearsCertification:
TUV/CE/CEC/FCC/CQC/ISO/ROHSPayment :
T/T, L/C, Paypal, Western Union
Products Name:

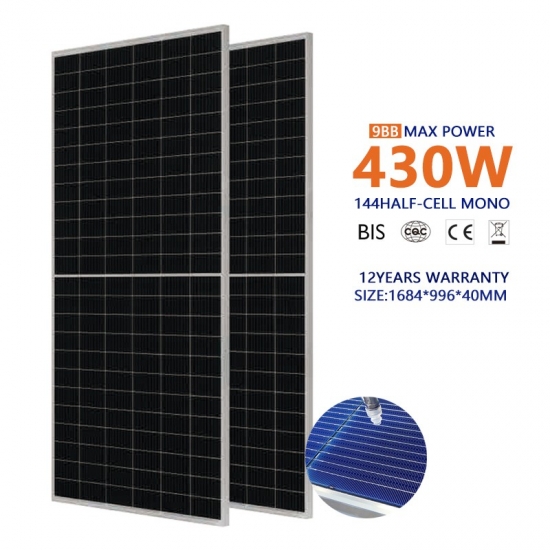

430W Solar Panel Half Cut 9BB 166mm Cells solar panels
Electrical Characteristics (STC)
|
Module Type |
HET-430M72HA |
HET-435M72HA |
HET-440M72HA |
HET-445M72HA |
|
Maximum Power (Pmax) |
430W |
435W |
440W |
445W |
|
Open-circuit Voltage (Voc) |
48.7V |
49.0V |
49.2V |
49.4V |
|
Short-circuit Current (Isc) |
11.22A |
11.31A |
11.39A |
11.46A |
|
Maximum Power Voltage (Vmp) |
40.3V |
40.5V |
40.7V |
40.8V |
|
Maximum Power Current (Imp) |
10.67A |
10.74A |
10.82A |
10.90A |
|
Module Efficiency(%) |
19.3% |
19.6% |
19.8% |
20.0% |
|
Power Tolerance |
0~+5W |
|||
|
Standard Test Environment |
Irradiance 1000W/m2, Cell Temperature 25℃，Spectrum AM 1.5 |
|||
Product details
Packing details
|
Container |
20GP |
40GP |
40HC |
|
Pcs/pallet |
30 |
30 |
30 |
|
Pallet/container |
5 |
11 |
22 |
|
Pcs/container |
150 |
330 |
660 |
To parterners:
We are Chinese solar panel factory specialized in solar panel manufacturing since 2009.
Now our 60cells, 72cells, 120half cells, 144half cells, 132half cells, 156half cells ,9BB half cells standard solar panel
for solar power plant application are on a high promotion with very good price:
Production capacity: 500MW annual to ensure fast delivery.
Our advatages:
1.OEM acceptable in MOQ order.
2.Quality Promission, We are not the cheapest but the only one who can make sure the Europe level quality by refunding.
3.Quick delivery based our own factory, some Germany customer solar panels in stock.1000PCS less in 15days.
4.Flexible payment terms.
More Products information pls contact with us mail:coco20.xu@gmail.com.
Previous :
big energy 9BB 144 half cells solar panel Max 450W power outputNext :
435W Solar Panel Mono 9BB half cut 144pcs solar cellsIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Monocrystalline 9BB half cell solar panel 420-450W 144cells ,high power, anti-hotspot, on grid system, off grid system, residencial solar system
Assembled with high-efficiency PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
Assembled with high-efficiency PERC cells, Applications: Grid-tie, hybrid systems, off-grid, caravans, motorhomes.
Assembled with high-efficiency PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
Hetech 9BB solar model is also a great option to consider to power your appliances. Designed with 9BB monocrystalline cells ,power ranges from 340W to 440W that is good enough to fit high power need.
Assembled with multi-busbar (9BB) PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk.
9bb (busbar) Busbars distribute electricity with greater ease and flexibility. It is a thin strip of copper or aluminium between cells that conducts electricity which is called a busbar. It separates solar cells and conducts the direct current the cells collected from solar photon to the solar inverter, which converts the direct current into the useable current.
9BB half cell solar panel 340-375W 120cells ,high power,anti-hotspot,solar plant used,residencial solar power system
