Assembled with high-efficiency PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
Item No.:
HET-445M72AHMax Power:
445WWeight:
24.5kgDimension:
2115*1052*35mmWarranty:
25yearsCertification:
TUV/CE/CEC/FCC/CQC/ISO/ROHSPayment :
T/T, L/C, Paypal, Western UnionProducts Name:

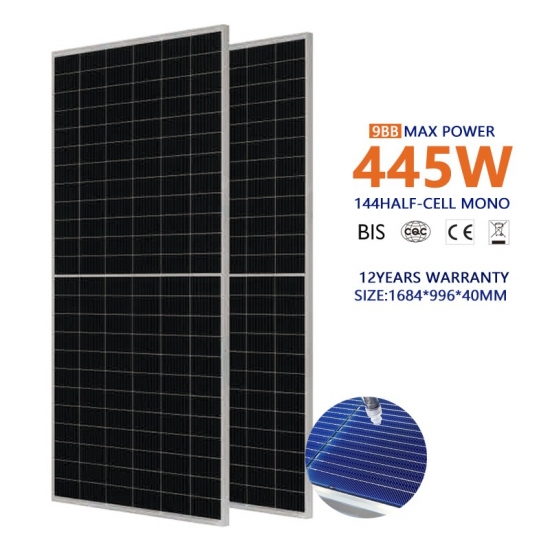

445W photovoltaic solar module Mono 9BB Half Cell Solar Power Panel
Electrical Characteristics (STC)
|
Module Type |
HET-435M72HA |
HET-440M72HA |
HET-445M72HA |
HET-450M72HA |
|
Maximum Power (Pmax) |
435W |
440W |
445W |
450W |
|
Open-circuit Voltage (Voc) |
49.0V |
49.2V |
49.4V |
49.6V |
|
Short-circuit Current (Isc) |
11.31A |
11.39A |
11.46A |
11.53A |
|
Maximum Power Voltage (Vmp) |
40.5V |
40.7V |
40.8V |
41.0V |
|
Maximum Power Current (Imp) |
10.74A |
10.82A |
10.90A |
10.98A |
|
Module Efficiency(%) |
19.6% |
19.8% |
20.0% |
20.2% |
|
Power Tolerance |
0~+5W |
|||
|
Standard Test Environment |
Irradiance 1000W/m2, Cell Temperature 25℃，Spectrum AM 1.5 |
|||
Package details
|
Container |
20GP |
40GP |
40HC |
|
Pcs/pallet |
30 |
30 |
30 |
|
Pallet/container |
5 |
11 |
22 |
|
Pcs/container |
150 |
330 |
660 |
To parterners:
We are Chinese solar panel factory specialized in solar panel manufacturing since 2009.
Now our 60cells, 72cells, 120half cells, 144half cells, 132half cells, 156half cells ,9BB half cells standard solar panel
for solar power plant application are on a high promotion with very good price:
Production capacity: 500MW annual to ensure fast delivery.
Our advatages:
1.Higher Module Efficiency. 5-10W extra power due to the half-cell system
2.More energy yield compared to standard solar panels
3.Lower operating temperature & elimination of hot spots
Better shading tolerance.
More Products information pls contact with us mail:coco20.xu@gmail.com.
Previous :
144PCS 9BB solar cells for BIPV 440W half cell solar panelNext :
big energy 9BB 144 half cells solar panel Max 450W power outputIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Monocrystalline 9BB half cell solar panel 420-450W 144cells ,high power, anti-hotspot, on grid system, off grid system, residencial solar system
Assembled with high-efficiency PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
Assembled with high-efficiency PERC cells, Applications: Grid-tie, hybrid systems, off-grid, caravans, motorhomes.
Assembled with high-efficiency PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
Hetech 9BB solar model is also a great option to consider to power your appliances. Designed with 9BB monocrystalline cells ,power ranges from 340W to 440W that is good enough to fit high power need.
Assembled with multi-busbar (9BB) PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk.
9bb (busbar) Busbars distribute electricity with greater ease and flexibility. It is a thin strip of copper or aluminium between cells that conducts electricity which is called a busbar. It separates solar cells and conducts the direct current the cells collected from solar photon to the solar inverter, which converts the direct current into the useable current.
9BB half cell solar panel 340-375W 120cells ,high power,anti-hotspot,solar plant used,residencial solar power system
