The MBB approach has the potential to reduce silver usage by up to 50%-80%. Furthermore, less silver on the front in turn reduces finger shading as well.So the efficient 9BB solar panel can provide more power and have the larger market.
Item No.:
HET-365M60AHMax Power:
365WWeight:
20.5kgDimension:
1776*1052*35mmWarranty:
25yearsCertification:
TUV/CE/CEC/FCC/CQC/ISO/ROHSPayment :
T/T, L/C, Paypal, Western Union
Products Name:

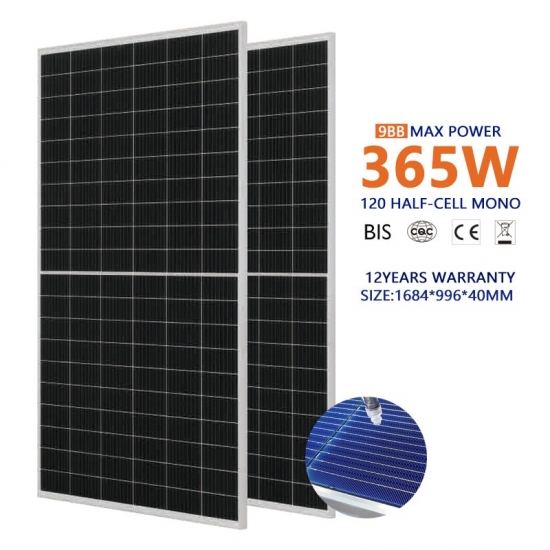

9BB half cell solar panel 360W 365W 370W 375W 120cells MONO PERC
Enhanced reliability
· PID resistant
· LID + LeTID less than 2.0%
· Lower hot spot temperature
· Better shading tolerance
Electrical Characteristics(STC):
|
Mechanical Characteristics |
||||
|
Front Glass |
3.2mm high transmission tempered glass |
|||
|
Encapsulation |
EVA |
|||
|
Cells |
120pcs 166×83mm Monocrystalline solar cells |
|||
|
Backsheet |
Composite film |
|||
|
Frame |
Anodized aluminum profile |
|||
|
Junction Box |
Rated current:15A,IP68,TUV |
|||
|
Cables |
length 300mm;customized length |
|||
|
Connectors |
Compatible with MC4 |
|||
|
Module Type |
HET-360M60HA |
HET-365M60HA |
HET-370M60HA |
HET-375M60HA |
|
Maximum Power (Pmax) |
360W |
365W |
370W |
375W |
|
Open-circuit Voltage (Voc) |
40.5V |
40.7V |
40.9V |
41.1V |
|
Short-circuit Current (Isc) |
11.35A |
11.43A |
11.52A |
11.60A |
|
Maximum Power Voltage (Vmp) |
34.0V |
34.2V |
34.4V |
34.6V |
|
Maximum Power Current (Imp) |
10.59A |
10.68A |
10.76A |
10.84A |
|
Module Efficiency(%) |
19.3% |
19.5% |
19.8% |
20.1% |
|
Power Tolerance |
0~+5W |
|||
|
Standard Test Environment |
Irradiance 1000W/m2, Cell Temperature 25℃，Spectrum AM 1.5 |
|||
Packing Details:
|
Container |
20GP |
40GP |
40HC |
|
Pcs/pallet |
30 |
30 |
30 |
|
Pallet/container |
6 |
12 |
26 |
|
Pcs/container |
180 |
360 |
780 |
More Products information pls contact with us mail :coco20.xu@gmail.com.
Previous :
360W 9BB Solar Panel 120 Half Cut Solar CellNext :
High Efficient 340W 9BB Half-Cut Mono Solar CellsIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Monocrystalline 9BB half cell solar panel 420-450W 144cells ,high power, anti-hotspot, on grid system, off grid system, residencial solar system
Assembled with high-efficiency PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
Assembled with high-efficiency PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
Assembled with high-efficiency PERC cells, Applications: Grid-tie, hybrid systems, off-grid, caravans, motorhomes.
Assembled with high-efficiency PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
Hetech 9BB solar model is also a great option to consider to power your appliances. Designed with 9BB monocrystalline cells ,power ranges from 340W to 440W that is good enough to fit high power need.
Assembled with multi-busbar (9BB) PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk.
9bb (busbar) Busbars distribute electricity with greater ease and flexibility. It is a thin strip of copper or aluminium between cells that conducts electricity which is called a busbar. It separates solar cells and conducts the direct current the cells collected from solar photon to the solar inverter, which converts the direct current into the useable current.
